AED PLUS®
The Zoll AED Plus is a durable, easy-to-use defibrillator designed for both trained responders and laypersons. Equipped with real-time CPR feedback, it provides visual and audible prompts to guide users in delivering high-quality chest compressions and administering a shock when necessary. With its simple, intuitive design and clear instructions, the Zoll AED Plus ensures an effective response during cardiac emergencies, making it a trusted choice for public spaces, workplaces, and healthcare environments.
The Only AED With Real CPR Help®

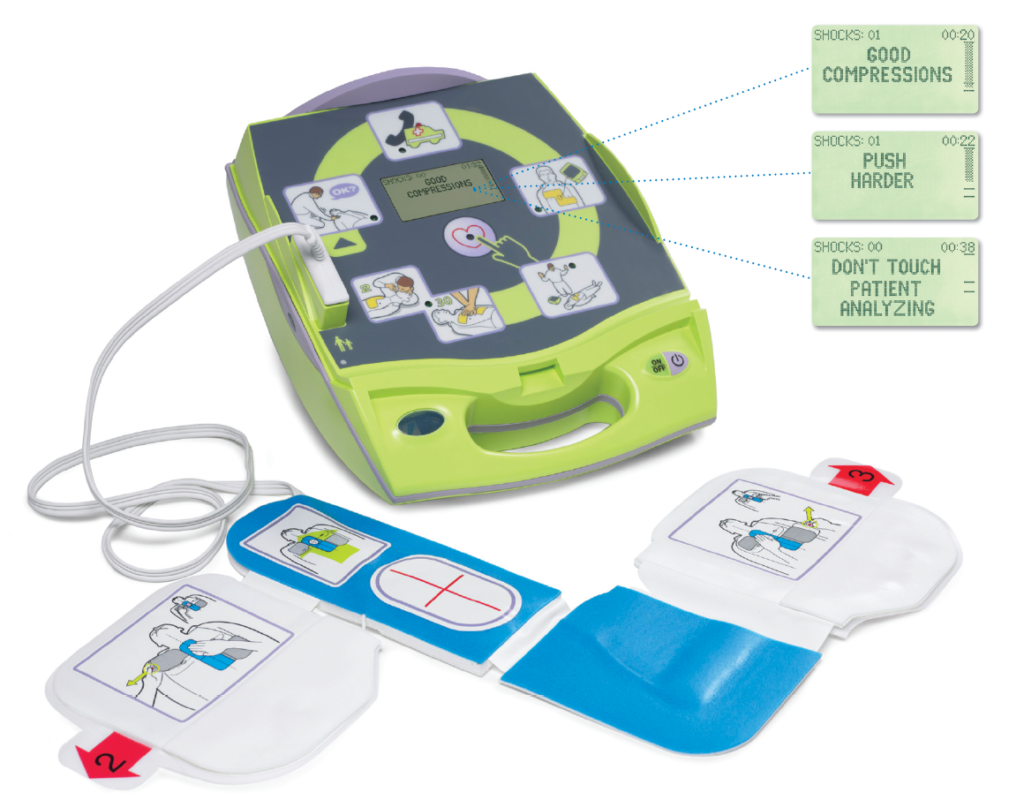

The AED Plus® is the only AED equipped with Real CPR Help®, providing real-time CPR feedback to assist rescuers in saving lives. While only half of sudden cardiac arrest victims require a shock, 100% need high-quality CPR. Real CPR Help guides you through every step, giving clear audible and visual prompts to let you know when to “Push Harder” or when you’re delivering “Good Compressions.”
- No More Guesswork
- User-friendly Electrodes Design
- Low Cost of Ownership
- Fully Automatic Option
It's All Online Now
PlusTrac—Your Guarantee
PlusTrac™ simplifies regular AED inspections, making the process quick and easy. After registering your AED, download the CheckAED™ App from PlusTrac onto your smartphone or tablet. When it’s time to inspect your AED, simply check its status indicator and log the AED’s readiness in PlusTrac. You’re finished! If any issues or replacements are needed, the AED program manager will be notified immediately.
Even if you have AEDs from multiple manufacturers, PlusTrac can manage them all in one system.
Even if you have AEDs from multiple manufacturers, PlusTrac can manage them all in one system.
Specifications
| Waveform | Rectilinear Biphasic |
| Defibrillator Charge Hold Time | 30 seconds |
| Energy Selection | Automatic preprogrammed selection (120J, 150J, 200J) |
| Charge Time | Less than 10 seconds with new batteries |
| Self-test | Configurable automatic self-test from 1 to 7 days. Default = every 7 days. Monthly full-energy test (200J). |
| CPR: Metronome Rate | Variable 60 - 100 CPM |
| Battery Capacity | Typical new (20°C) = 5 years (225 shocks) or 13 hours continuous monitoring. End of life designated by Red X (typical remaining shocks = 9). |
| Data Recording and Storage | 50 minutes of ECG and CPR data. If audio recording option is installed and enabled, 20 minutes of audio recording, ECG, and CPR data. If audio recording is disabled, 7 hours of ECG and CPR data |
| Device Size (H x W x D) | 13.3 cm x 24.1 cm x 29.2 cm |
| Weight | 3.1 kg |
| Device Classification | Class II and internally powered per EN60601-1 |
| CPR-D-padz Shelf Life | 5 years |
