ZOLL - AED 3
ZOLL AED SARAWAK
AED 3 BLS
The Zoll AED 3 is a high-performance automated external defibrillator designed for advanced responders. It offers real-time CPR feedback, a high-resolution color touchscreen, and fast shock delivery, ensuring quick and effective treatment in cardiac emergencies. Equipped with intuitive voice prompts, advanced ECG analysis, and extensive data storage, the ZOLL AED 3 is built to deliver reliable performance in both clinical and challenging environments.
Enhanced Real CPR Help
The ZOLL AED 3™ BLS features advanced Real CPR Help® technology, which tracks the depth and rate of each chest compression, displaying this information numerically on the CPR Dashboard™ for real-time feedback.

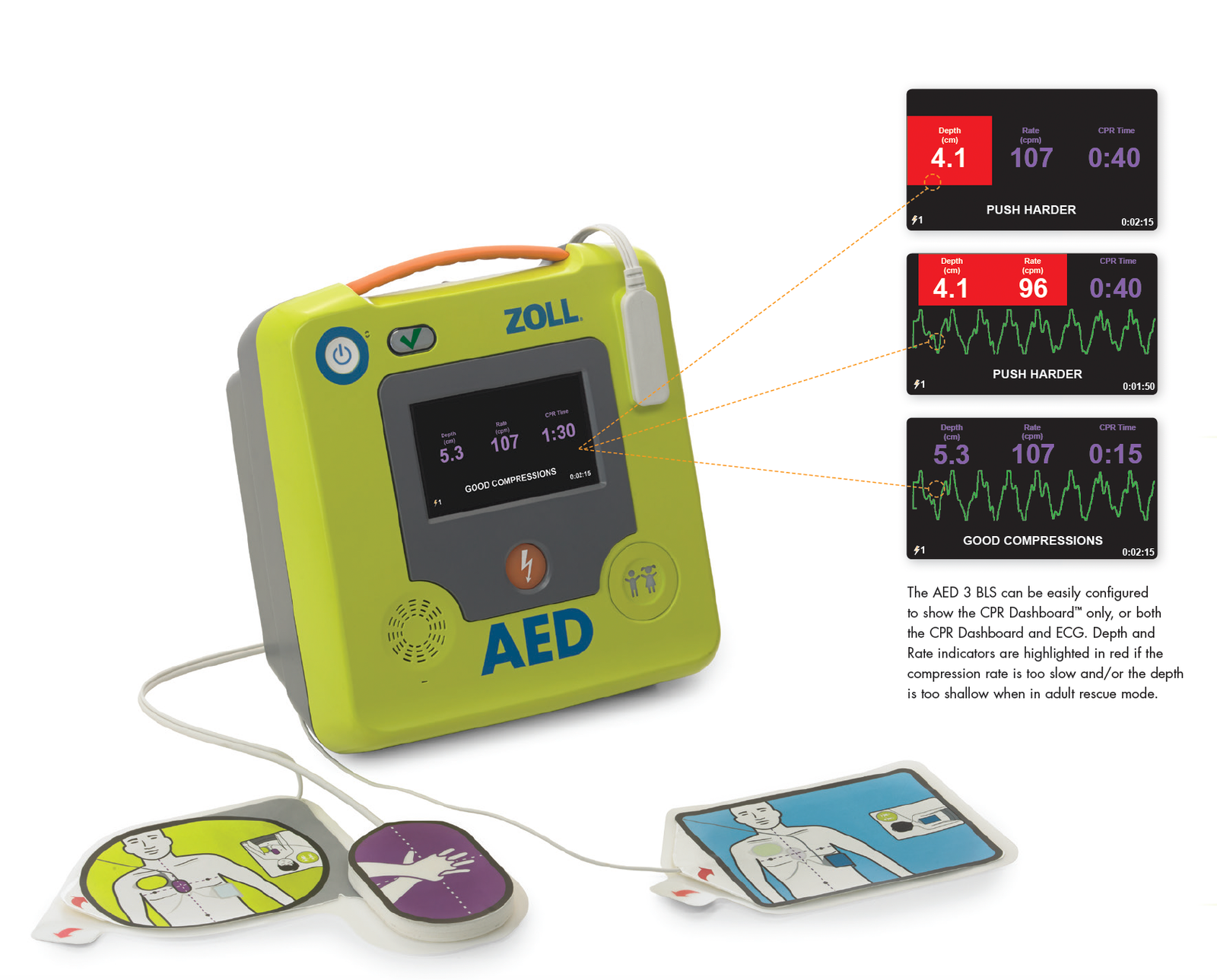

The CPR Dashboard displays key information such as elapsed time, CPR cycle countdown, shocks delivered, and ECG. Integrated with Real CPR Help, it provides real-time, visible, and audible feedback to guide rescuers, ensuring they are delivering high-quality CPR.
The CPR Dashboard function also supports pediatric rescues by displaying CPR rate and depth values in pediatric mode. This feature helps rescuers adjust their compressions to better suit the size of the victim, ensuring more effective CPR.

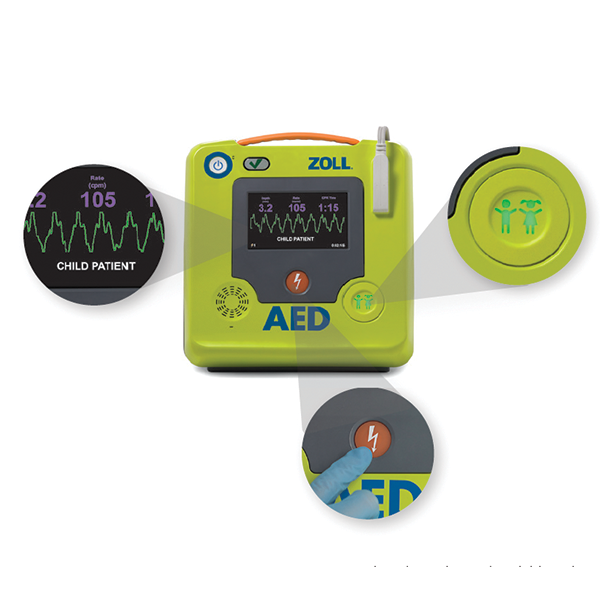

RapidShock™ Analysis

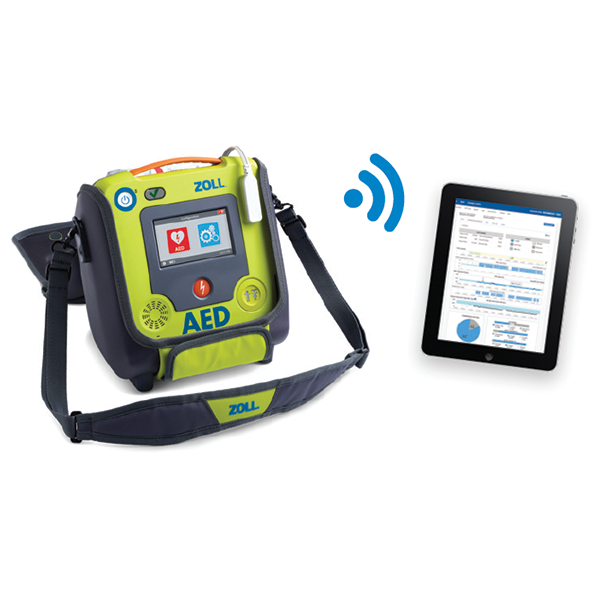

Wifi & USB Connection

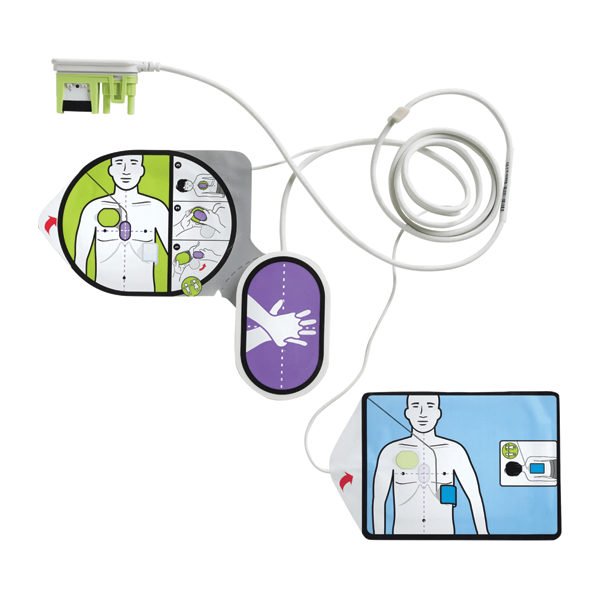

CPR Uni-padz™
Specifications
| Waveform | ZOLL Rectilinear Biphasic™ |
| Defibrillator Charge Hold Time | 30 seconds; ZOLL AED 3 Automatic model: 3 seconds prior to automatic shock delivery |
| Energy Selection | Factory preprogrammed selection (Adult: 120 J, 150 J, 200 J; Child: 50 J, 70 J, 85 J) |
| Charge Time | Less than 10 seconds with new battery |
| Pre-shock Pause | Less than 5 seconds (semi-automatic) and less than 8 seconds (automatic) with new battery |
| Display Format | High-resolution LCD with capacitive touch panel |
| Display Screen Size | 2.12 in x 3.74 in |
| Data Recording and Storage | User-configurable for 1 or 2 clinical events for total of 120 minutes. Includes ECG, impedance measurements, device prompts and CPR data |
| Device Size: (H x W x D) | 12.7 cm x 23.6 cm x 24.7 cm |
| Weight | 2.5 kg |
| Drop Test | 1 meter |
| Battery Capacity | Typical new (20°C) = 5 years (140 shocks) or 6 hours continuous monitoring |
| Battery Standby Life (once installed) | 5 years with weekly self-test. End of life indicated by blank status window (typical remaining shocks: 9). |
| Battery Shelf Life | Store for up to 2 years at 23°C (77°F) prior to installing in ZOLL AED 3 to maintain above battery life. |
| CPR Uni-padz Shelf Life | 5 years |
