HEARTSINE AED 350P
HEARTSINE AED SARAWAK

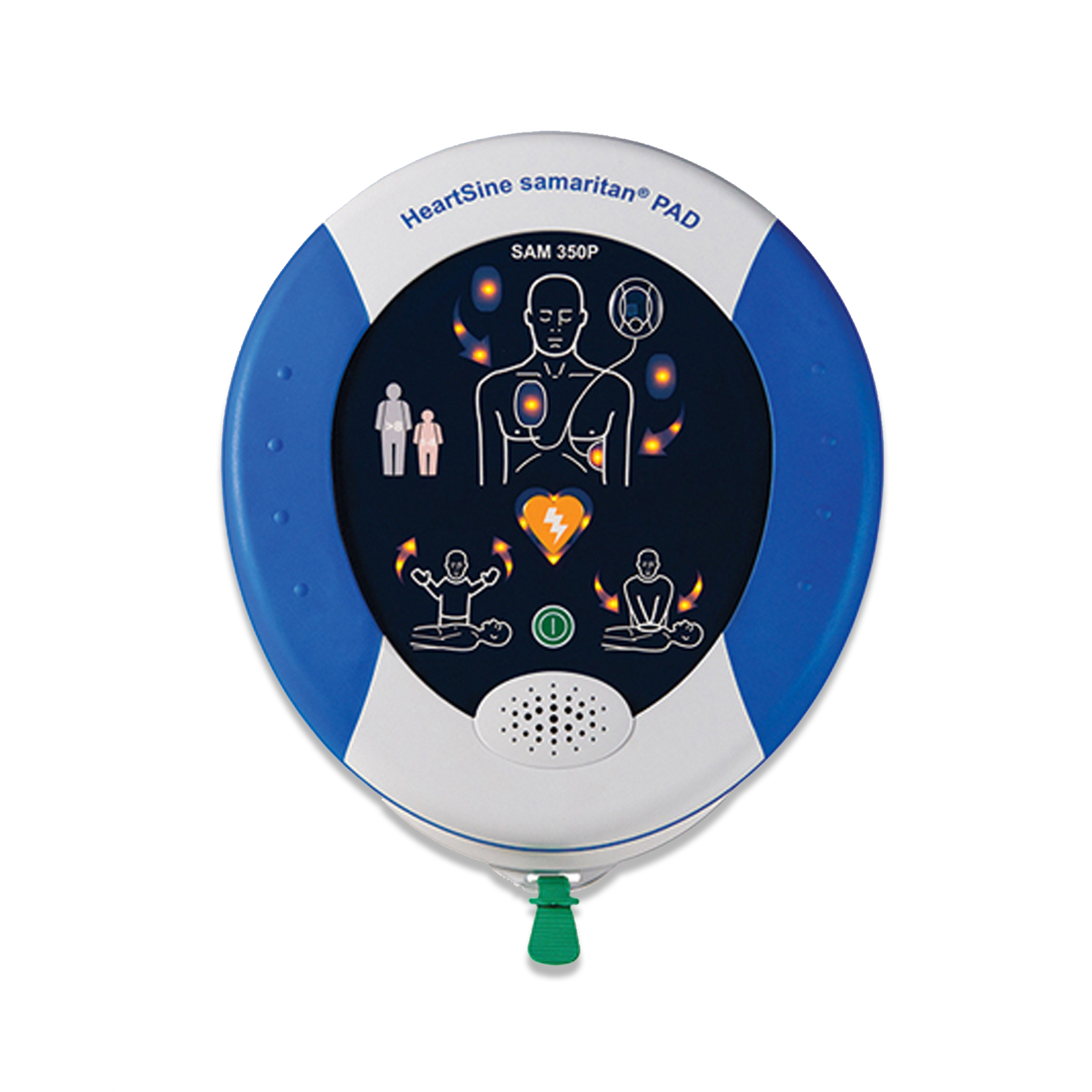

samaritan® 350P

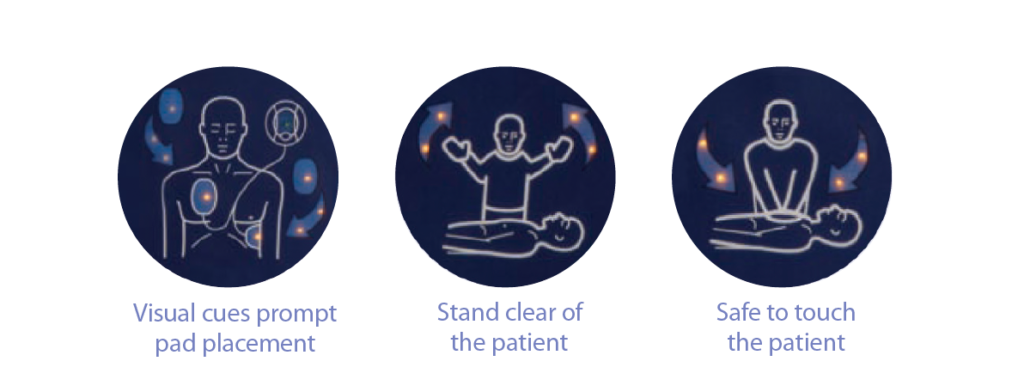

The Heartsine samaritan® 350P is a portable, lightweight automated external defibrillator (AED) designed for quick response during cardiac emergencies. Perfect for both public and private settings in Sabah, this device offers a user-friendly interface with clear audio-visual prompts, enabling even untrained bystanders to administer lifesaving shocks effectively. Its durable design and built-in connectivity make it a reliable choice for improving emergency preparedness across the region.
With advanced technology and consistent performance, the Heartsine samaritan® 350P is a crucial tool for protecting lives in Sarawak.
Portable and lightweight
The samaritan® PAD 350P is lighter (1.1kg) and (10 x 13.3 x2.4 cm) smaller than other defibrillators.
Advanced Technology
Always ready
A System Status Ready Indicator flashes to confirm that the entire system is operational and ready for use. The device also automatically performs a self-check every week to ensure it’s functioning properly.
Durable
The samaritan PAD resists shock and vibration and carries an IP56 Rating. The industry’s highest rating against dust and water. It also carries a 10-year unit warranty.
Specifications
| Size | 8.0 in x 7.25 in x 1.9 in (20 cm x 18.4 cm x 4.8 cm) |
| Weight | 2.4 lbs (1.1 kg) including Pad-Pak Battery |
| Waveform | Self-Compensating Output Pulse Envelope (SCOPE) Biphasic waveform. Optimized biphasic escalating waveform compensates energy, slope and envelope for patient impedance |
| Sensitivity | Meets ISO 60601-2-4 |
| Operating/Standby Temperature | +32°F to +122°F (0°C to 50°C ) |
| Water Resistance | IEC 60529/EN 60529 IP56 |
| Falling Height | 3.5 feet (1 meter) |
| Energy | Adult: 150-150-200J Child: 50-50-50J |
| Charging Time | Typically 150J in < 8 seconds, 200J in < 12 seconds (New Battery) Typically 150J in < 8 seconds, 200J in < 12 seconds (After 6 Discharge) |
| Memory Capacity | 90 minutes of ECG (full disclosure) and event/ incident recording |
| Playback Capabilities | Custom USB cable directly connected to PC and saver EVO windows based data review software |
| Shelf Life | 4 years from manufacture date |
| Battery Type | Lithium Manganese Dioxide (LiMnO2) |
| Capacity | > 60 shocks at 200J 18V, 1.5 Amp Hrs |
| Active Gel Area | 15.5 in2 (100 cm2 ) |
| Cable Length | 3.5 feet (1 meter) |

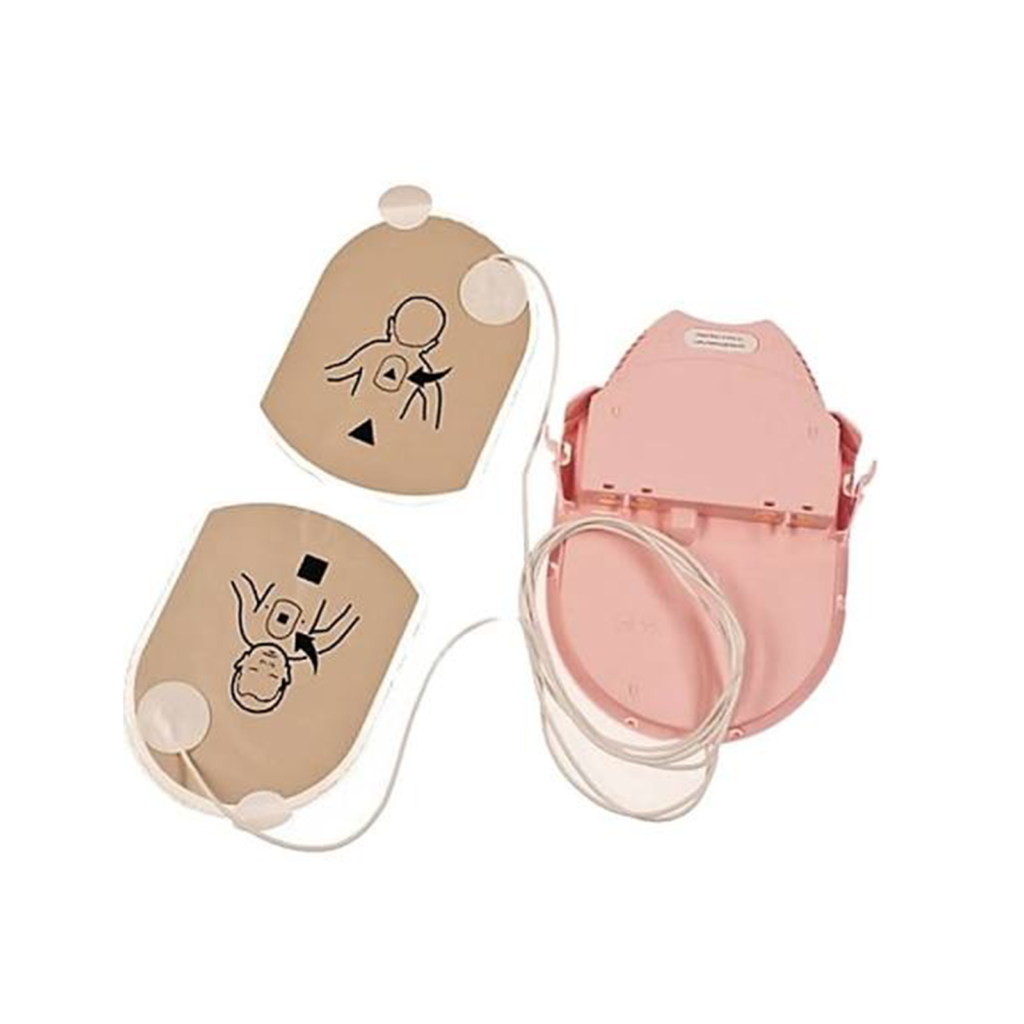

samaritan® 350P Accessories
