MINDRAY AED - BeneHeart C2
MINDRAY AED SARAWAK

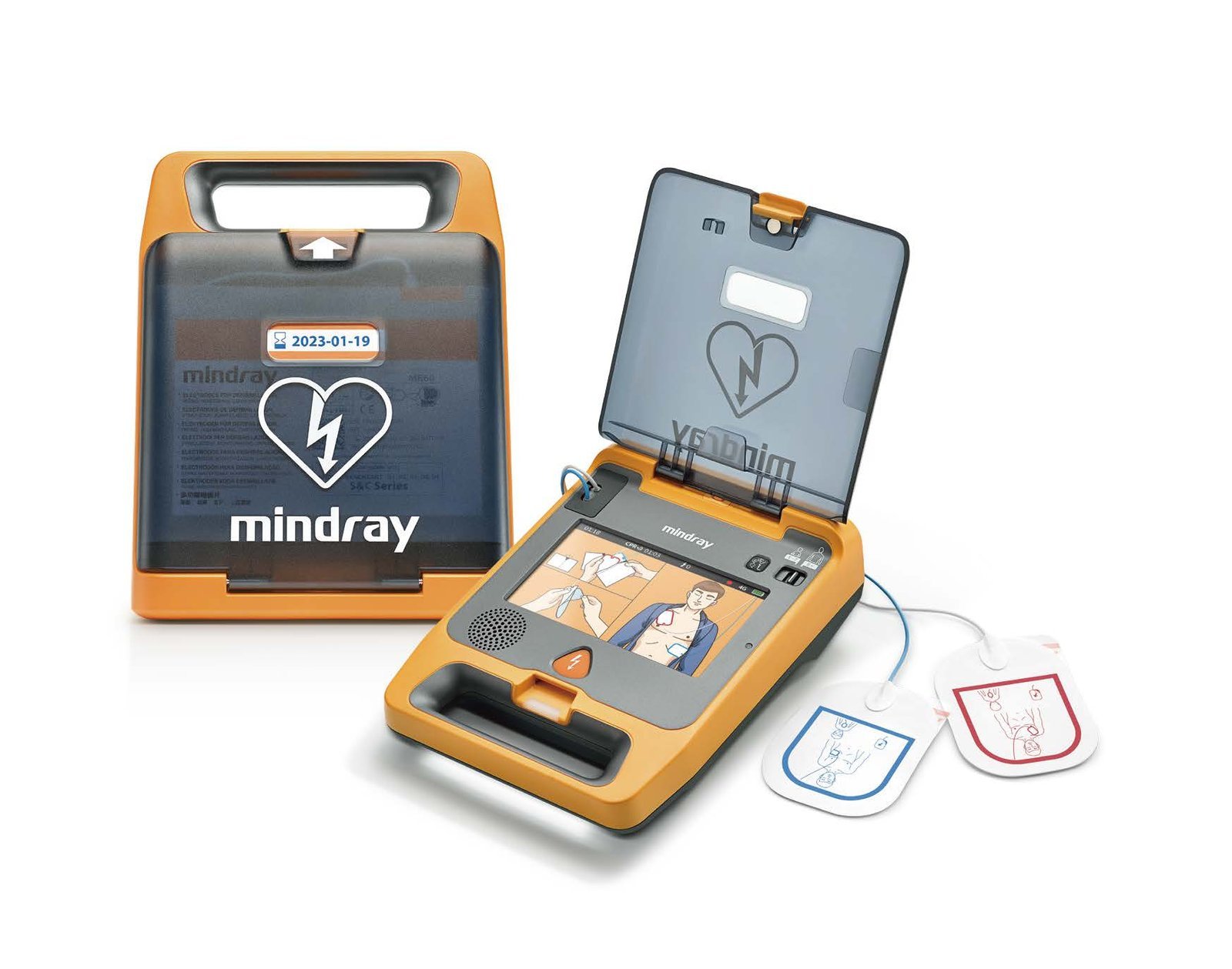

BeneHeart C2 with Display
The Mindray BeneHeart C2 is a compact, easy-to-use Automated External Defibrillator (AED) designed to provide quick and effective care during cardiac emergencies. With its advanced technology, clear voice prompts, and reliable shock delivery system, the BeneHeart C2 ensures both healthcare professionals and lay responders can act with confidence. Its durable construction, long-lasting battery, and intuitive design make it a great choice for various settings—whether at the workplace or in public spaces—where every second counts in saving lives.
Intuitive Design
The Mindray BeneHeart C2 AED features an intuitive design with clear voice prompts and straightforward, user-friendly controls, enabling fast and confident operation during emergencies.
- 7" TFT color screen Auto adjusting Screen brightness
- Open the lid to power on
- Adult/child mode
- Pre-connected adult/ child electrodes
- Up to 3 languages to select
- Semi-automatic or fully automatic version
- Voice Recording up to 1 hour
Faster & Powerful Shock
QShock™-Faster Time to 1st Shock
Success rates for defibrillation decrease with every passing second. The BeneHeart C2 is equipped with advanced QShock™ technology, which enhances the likelihood of a successful defibrillation. Thanks to QShock™, the BeneHeart C2 can deliver the first shock in under 8 seconds.*Not including the time of applying pads.

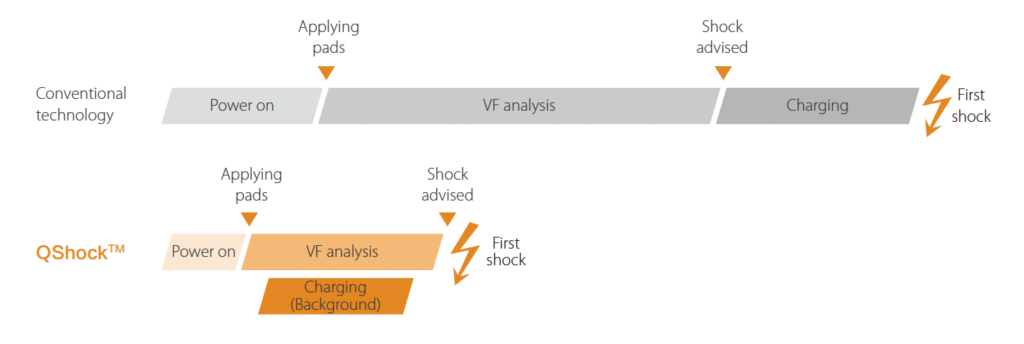

How can QShock™ technology achieve a faster first shock?
QShock™ technology not only significantly reduces the time for powering on and analyzing heart rhythm but also performs synchronous pre-charging during the analysis. Once the rhythm is analyzed, energy can be delivered immediately, without any delay, ensuring that the victim receives the shock as quickly as possible. This faster response time also helps rescuers remain calm, knowing the shock will be delivered without unnecessary waiting.
Stay Connected, Stay Cofident

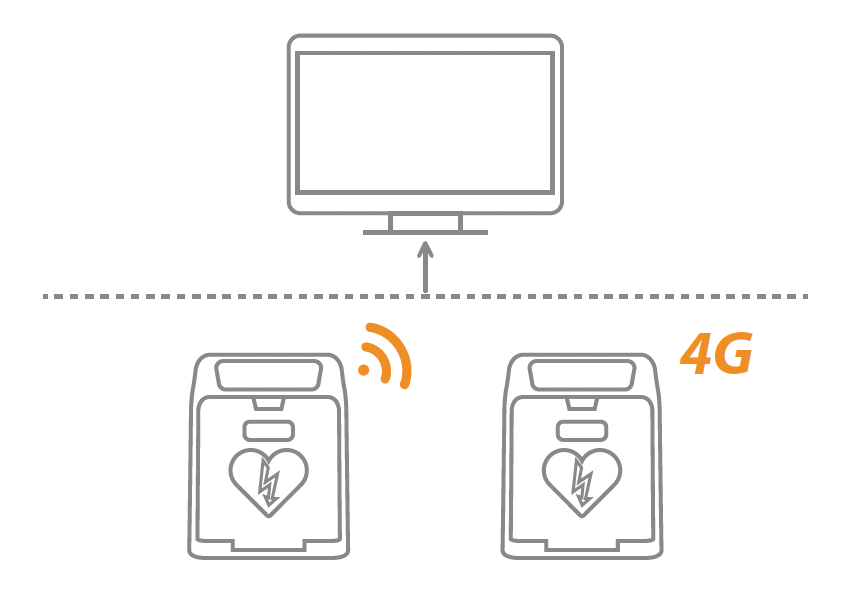

The AED-Alert™ 2.0 system enables remote and centralized AED management using advanced IoT technology, eliminating the need for manual inspections by automating self-tests and reducing daily maintenance costs. It offers comprehensive device status alerts to ensure the AED is always ready for use, minimizing maintenance risks and ensuring the device remains operational when needed most.
Flexible Network Solutions
BeneHeart C1A can be equipped with Wi-Fi or 4G in order to connect with AED-Alert™ 2.0 environments.
High Data Security
AED-Alert™ 2.0 fully meets the EU General Data Protection Regulation (GDPR).
Specifications
| Operations | Semi-automatic and fully automatic version |
| Range of selected energy | 100 to 360 J (adult) 10 to 100 J (child) |
| Energy default | 200 - 300 - 360 J (adult) 50 - 70 - 100 J (child) |

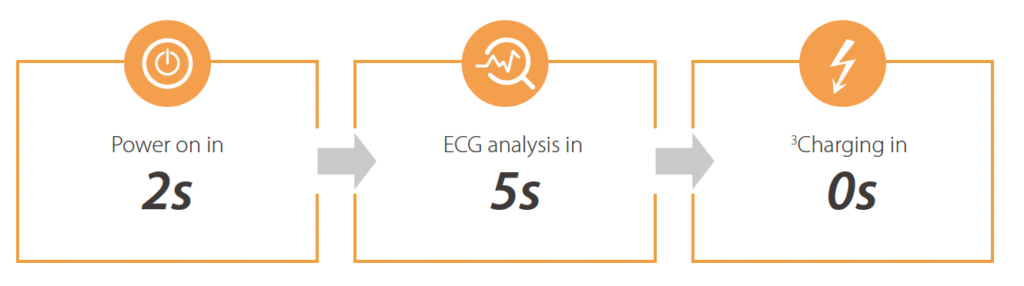

| Power on time | < 2 seconds |
| ECG analysis time | < 5 seconds |
| Charge time | 0 seconds (as device is pre-charged during ECG analysis |
| Time from power on to shock ready | < 8 seconds (200J, new Battery) |
| Dimension | 210mm x 286mm x 78mm |
| Weight | 2.3kg (including one battery) |
| Display | TFT Color LCD 7 inch 800 x 480 pixels |
| Dust/water resistant | IP55 |
| Battery Type | Lithium Manganese Dioxide (Li/MnO2), disposable, 4200mAh |
| Standby Life | 6 years (every week auto test, not in use, not sending self test report) |
| Battery Capacity (new battery) | > 12 hours of operating times, provides 350 shocks @ 200J |
| Replace battery indication | min. 10 shocks at 200J and 30 mins of operating time |
| Voice Recording | Up to 1 hour |
| CPR Data Storage | Up to 5 hours |
| Self test reports storage | 1000 records |
| Data export | Through USB flash memory |
