Nihon AED 3100
NIHON KOHDEN AED IN SARAWAK

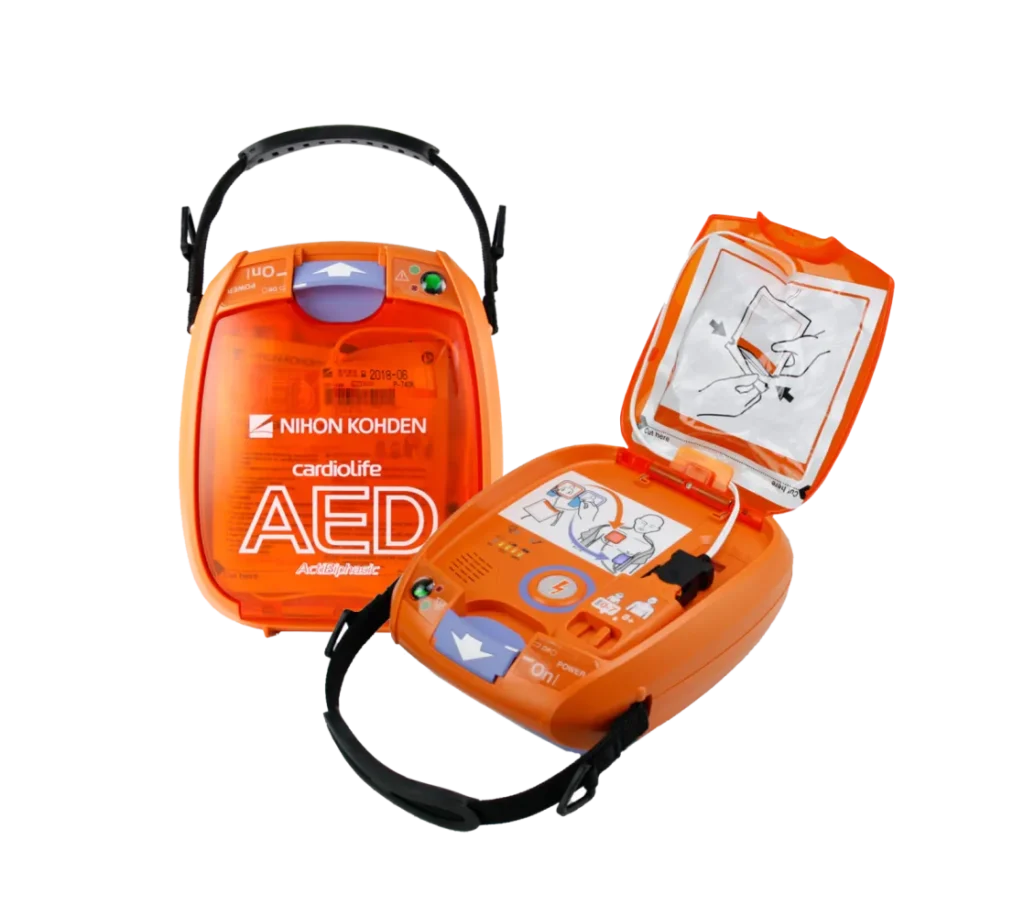

AED-3100
The Nihon Kohden AED3100 is a cutting-edge automated external defibrillator (AED), designed for use in a variety of environments across Sarawak. Compact and easy to use, it provides clear audio and visual prompts to guide users through the defibrillation process. Featuring advanced technology for fast rhythm analysis and rapid shock delivery, the AED3100 improves survival chances in cardiac emergencies. With its robust design and long-lasting battery, it is an ideal choice for hospitals, clinics, and public spaces throughout Sarawak.
Always be ready

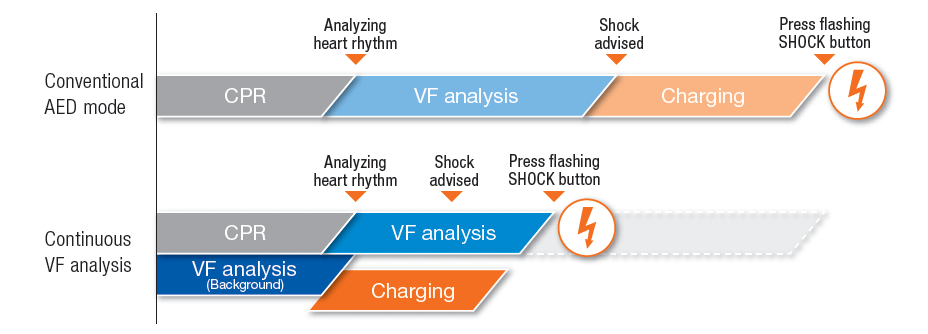

Continuous VF analysis
The AED-3100 features continuous VF analysis, allowing the ECG waveform to be analyzed even while CPR is in progress. This function enables the device to begin energy charging before a shock is advised, ensuring faster defibrillation and improving the chances of a successful outcome.
Within the reach of anybody

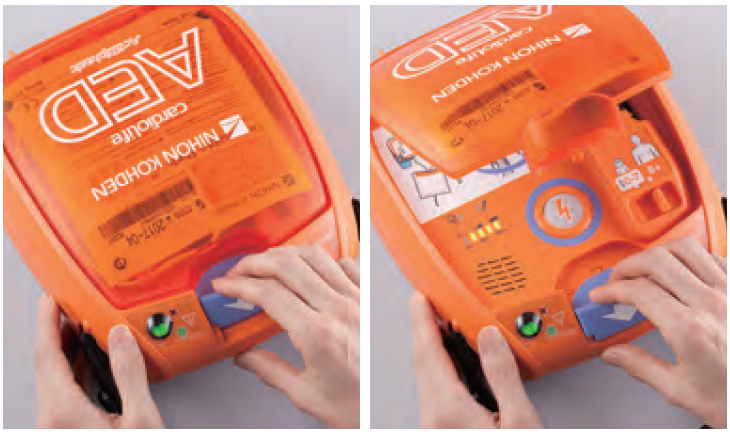

STEP 1 - Open Lid
Open the lid. The voice instruction starts immediately to guide you how to operate AED.

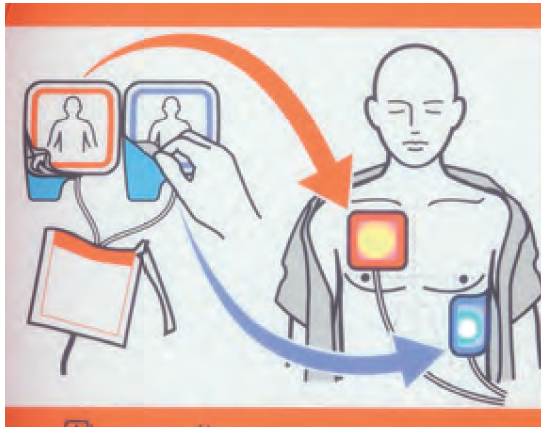

STEP 2 - Attach Pads
After attaching the pads, AED immediately starts to analyze ECG.

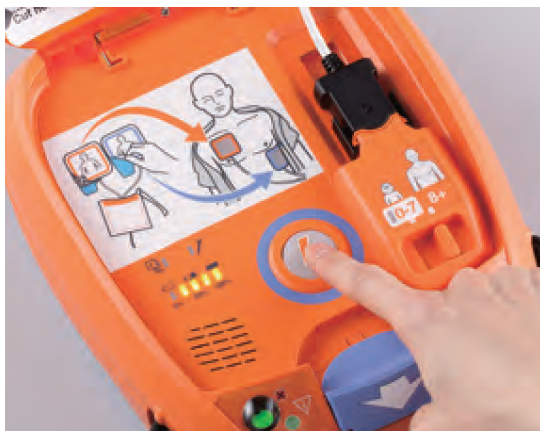

STEP 3 - Push Button
If the shock is needed, push the shock button that is flashing to shock the victim.
Specifications
| Energy | Adult: 150-200-200J Child: 50-70-70J |

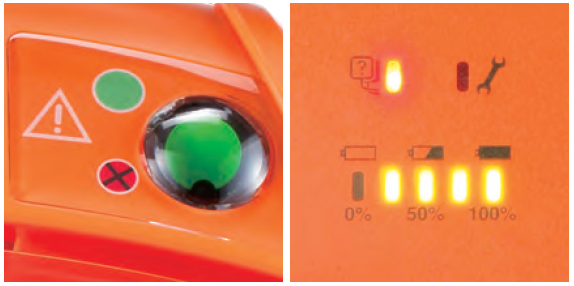

| User Interface | Instruction by voice, CPR timing sound 100times / minute Indicator (green/red), shock button, adult/child key |
| Battery | Capacity: 200 discharges or 7.5 hours monitoring |
| Analysis time | Less than 8 seconds, minimum 4.5 seconds |
| From turn on to discharge | Less than 15 seconds (with new battery) |
| Size | 206(W) x 252(D) xz 97(H) |
| Weight | 2.3kg with battery and pads, 1.9kg without battery and pads |
| Standard | Vibration: MIL-STD-810F 514.5C category 4 and category 9, EN1789 Water and dust proof: IP55 |
